UltraCool™ is ideal for all your outdoor application needs. We use state-of-the-art technology specially designed to meet any outdoor cooling application or event.
UltraCool™ Benefits
Outdoors can be more enjoyable on hot summer days with UltraCool™ systems. Corrigan guarantees quality performance and reliability, leading the way in the misting and water industry for over 35 years.
UltraCool™ Applications
- Patio Trellis
- Outdoor Dining
- Pool Sides
- Greenhouses
- Reptile Exhibits / Zoo Exhibits
- Animal Cooling
- Amusement Parks
- Theater Events
- Sporting Events
- Special Effects
- Custom Engineering
Engineering
Corrigan offers custom design services for non-standard installations and applications such as aesthetic fogging, humidity and propagation.
Warranty
2 years parts and one year labor. Nozzle and filters are considered maintenance items and are not covered. See Corrigan’s standard warranty for further details.

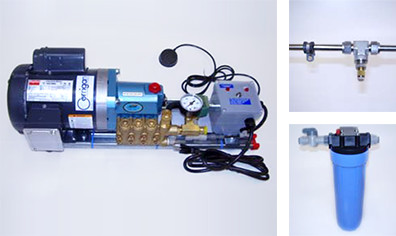

High Pressure UltraCool™ Systems
Features
- 150psi to 1000psi
- 316 Stainless steel mist bar, tees and clamps
- CAT brand Triplex pump
- ASCO brand solenoid valve
- 10in 1-micron sediment filter
- Safe, non-electric air actuated on/off switch
- Low feedwater pressure lock out with manual reset to protect pump
- Low feedwater and power indicator lights
- Adjustable system pressure
- Nozzle tees can be spaced to any desired length
- Nozzle tees can be swiveled around pipe for optimal results
Specifications
- 115V or 220V motor depending on pump size
- 1/2HP to 2HP pump depending on nozzle quantity
- 1/2in potable cold water supply required
- Pump Unit: 26in x 9in x 9in
- Shelf or floor mount
- Mist bar: 3/8in OD tube; 316 Stainless Steel
- Tees: 3/8in x 1/8in compression; 316 Stainless Steel

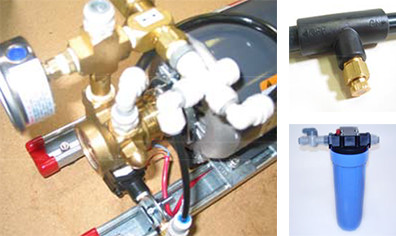

Low Pressure UltraCool™ Systems
Features
- 60psi to 150psi
- PVC and Delrin pipe and tees
- Procon brand pump
- ASCO brand solenoid valve
- 10in 1-micron sediment filter
- Safe, non-electric air actuated on/off switch
- Low feedwater pressure lock out with manual reset to protect pump
- Low feedwater and power indicator lights
- Adjustable system pressure
- Nozzle tees spaced every 24in
- Nozzle tees can be swiveled around pipe for optimal results
Specifications
- 115V motor
- 1/2HP pump
- 1/2in potable cold water supply required
- Pump Unit: 26in x 9in x 9in – Shelf or floor mount
- Mist bar: 1/2in OD PVC Tube
- Tees: 1/2in x 1/8in Delrin spaced 24in
